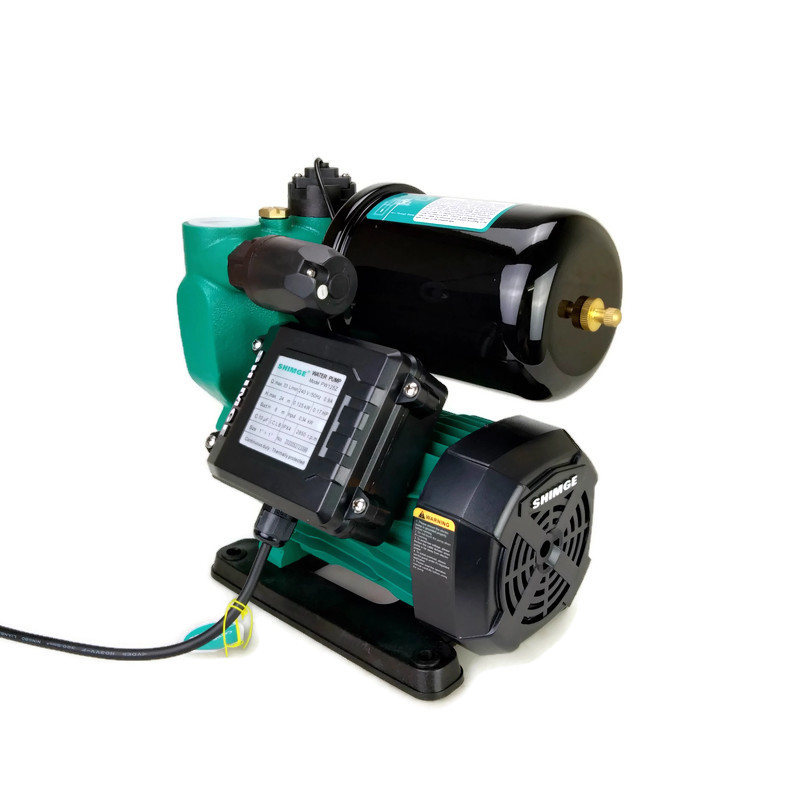

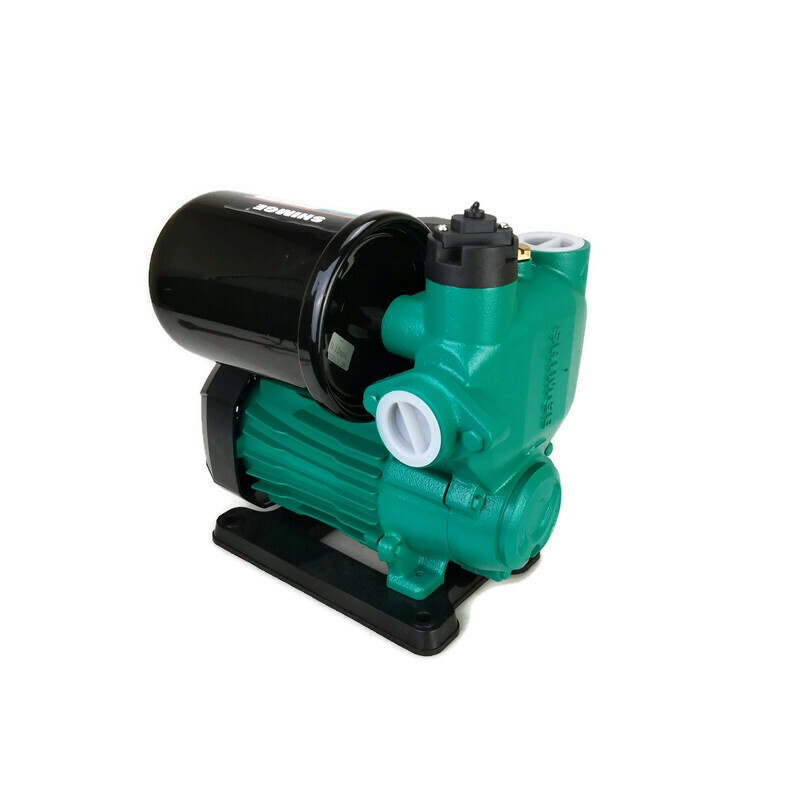

SHIMGE PW125Z FULLY AUTOMATIC SELF-PRIMING BOOSTER PUMP for COLD AND HOT WATER

SHIMGE PW125Z FULLY AUTOMATIC SELF-PRIMING BOOSTER PUMP for COLD AND HOT WATER

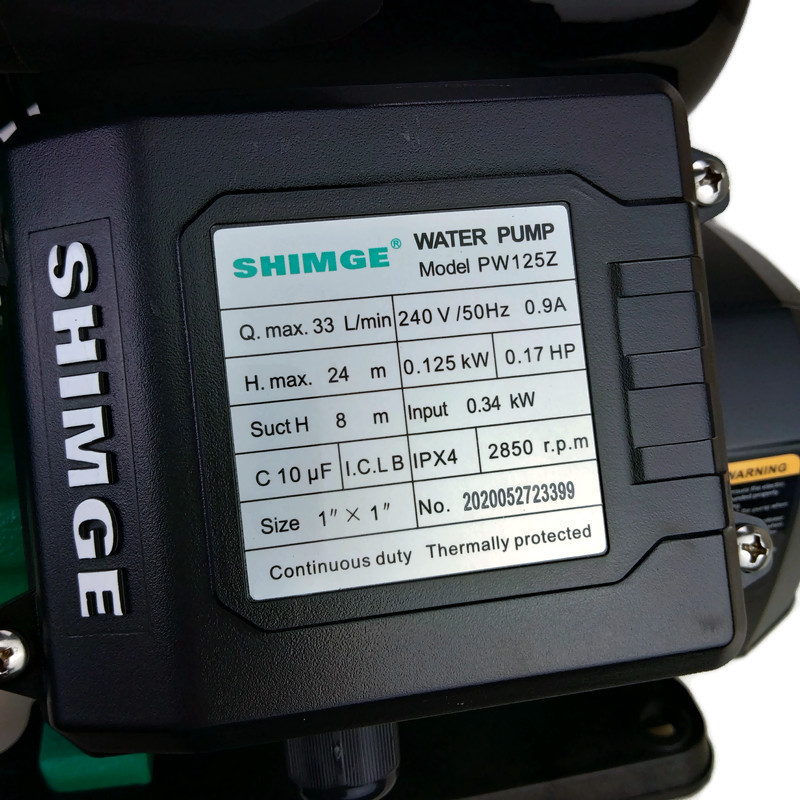

– MODEL ; PW125Z
– MOTOR ; 0.125 kW ( 0.17 HP )
– VOLTAGE ; AC 220 ~ 240 V
– NO-LOAD SPEED ; 2,850 rpm
– INLET / OUTLET PORT ; 1″ X 1″
– MAX. FLOW ; 30 L/min
– MAX. HEAD ; 24 meter
– MAX. SUCTION LIFT ; 8 meter
– PRESSURE ON ; 1.5 kg/cm2, OFF ; 2.4 kg/cm2
– MAX. LIQUID TEMPERATURE ; 90oC
– MAX. AMBIENT TEMPERATURE ; 40oC
– MAX. WORKING PRESSURE ; 6 bar
– WEIGHT ; 7.8 Kg
– WARRANTY ; 12 month

Features ;
– PCB board control auto Off when no water come.
– A self-priming peripheral pump for both Hot and Cold water.
– Advanced structure with Lower noise.
– Intelligent control by both flow sensor and pressure sensor, which is convenient.
– Brass impeller, stainless steel insert and shaft, which are anti-rust.
– 100% copper winding Motor.

THIS PRODUCT PACKAGE INCLUDES ;
– 1 x PW125Z WATER SELF-PRIMING BOOSTER PUMP
– 1 x INSTRUCTIONS MANUAL
